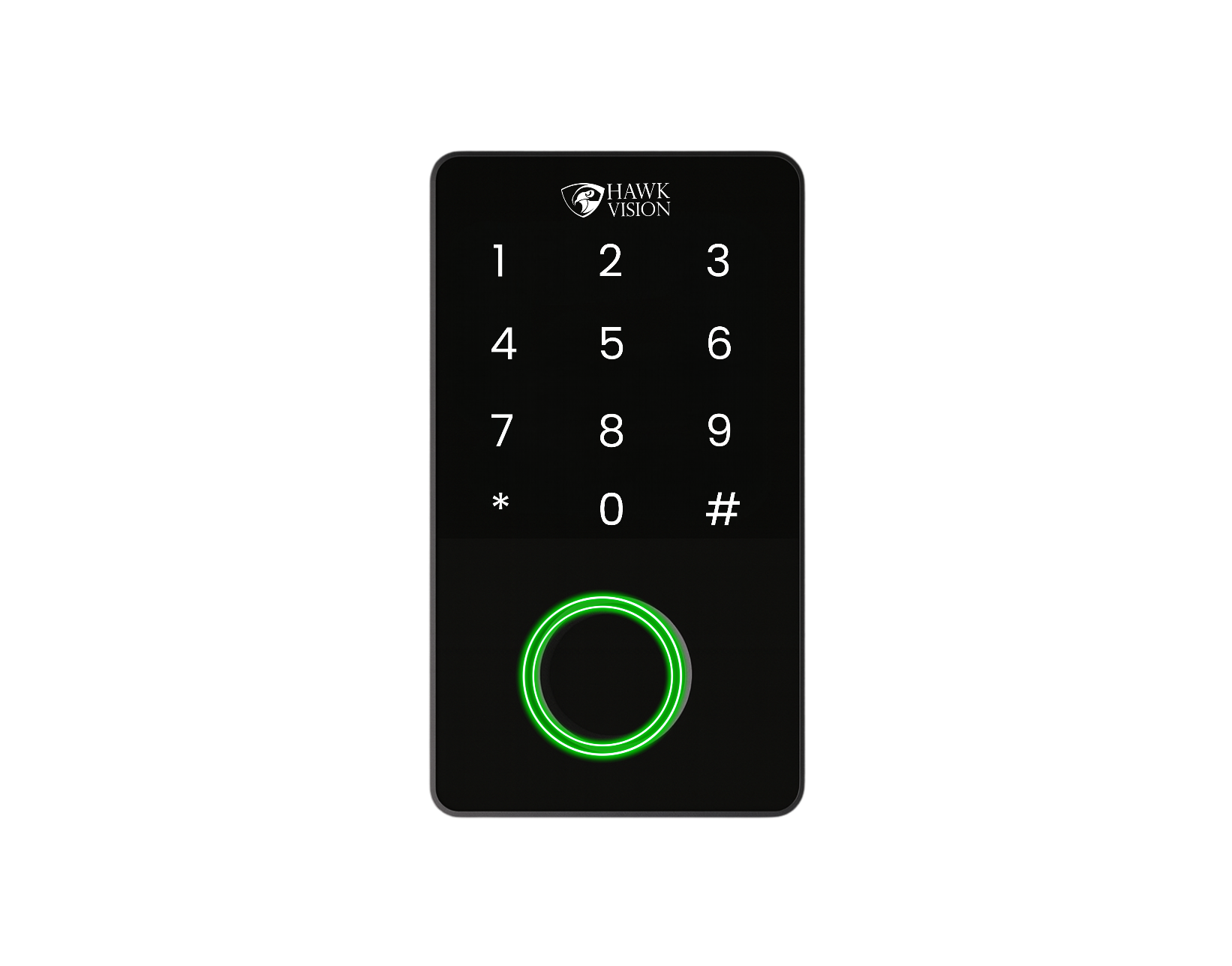

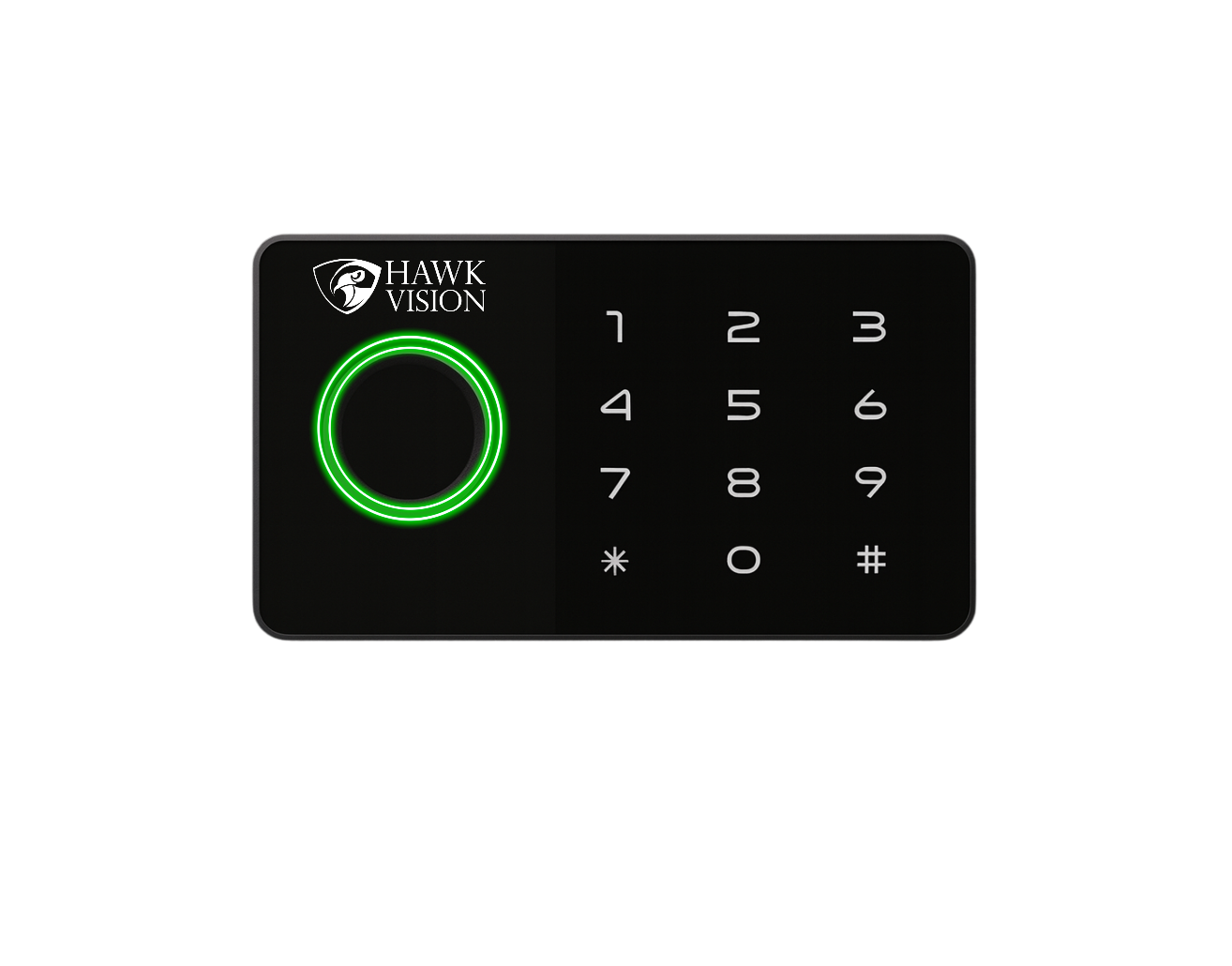

Hawk Vision HV-SDL-CL-05 Smart Cabinet Lock with Fingerprint, Password & HawkSmart App Access
The Hawk Vision HV-SDL-CL-05 Smart Cabinet Lock is a compact and modern smart locking solution designed for drawers, cabinets, lockers, cupboards, storage units, and similar furniture applications. Built with ABS material and a sleek black finish, this smart cabinet lock offers convenient and secure access through fingerprint, password, and HawkSmart mobile app verification.
With support for up to 50 fingerprints, 50 passwords, and 50 cards, the HV-SDL-CL-05 is suitable for personal, office, commercial, and storage security use. The lock features fast fingerprint identification in less than 1 second, optional 500DPI fingerprint sensor, low power consumption, and long battery life of approximately 5000 times / 6 months.
The smart cabinet lock is powered by alkaline batteries and includes Type C backup power support, making it practical for daily use. It is applicable for drawer, cabinet etc., and is designed to work in a wide operating temperature range from -25°C to 55°C.
Website: www.hawkvisionindia.com
Key Features
-
Smart cabinet lock for drawer, cabinet etc.
-
3-way access: Fingerprint, App, and Password
-
HawkSmart mobile app support
-
Fingerprint capacity: 50
-
Password capacity: 50
-
Card capacity: 50
-
Fast fingerprint identify time: <1s
-
Optional 500DPI fingerprint sensor
-
ABS material body
-
Black color finish
-
Type C backup power: Yes
-
Battery life: 5000 times, approx 6 months
-
Suitable for cabinets, drawers, lockers, and storage units
Product Specifications
|
Specification |
Details |
|
Model No. |
HV-SDL-CL-05 |
|
Product Type |
Smart Cabinet lock |
|
Materials |
ABS |
|
Color |
Black |
|
Plate Size |
88L × 50W mm |
|
3-Way Access |
Fingerprint, App (HawkSmart) and Password |
|
App Name |
HawkSmart |
|
Verification Type |
Fingerprint, Password and mobile app |
|
Fingerprint Capacity |
50 |
|
Password Capacity |
50 |
|
Card Capacity |
50 |
|
Fingerprint Sensor |
Optional (500DPI) |
|
Fingerprint Identify Time |
<1s |
|
Fingerprint Verify Mode |
01:N |
|
Fingerprint False Rejection Rate |
<0.15% |
|
Power Supply |
3pcs AAA alkaline batteries |
|
Power Supply |
4.5–6.5V (4PCS AA Alkaline battery) |
|
Working Current |
<250 mA (Strong drive capability) |
|
Current Consumption |
<200mA |
|
Battery Life |
5000 times (approx 6 months) |
|
Type C Backup Power |
Yes |
|
Relative Humidity |
20% to 93% |
|
Working Temperature |
-25~55 Degree |
|
Operating Temperature |
-25°C ~55°C |
|
Applicable For |
Drawer, cabinet etc. |
|
Website |
