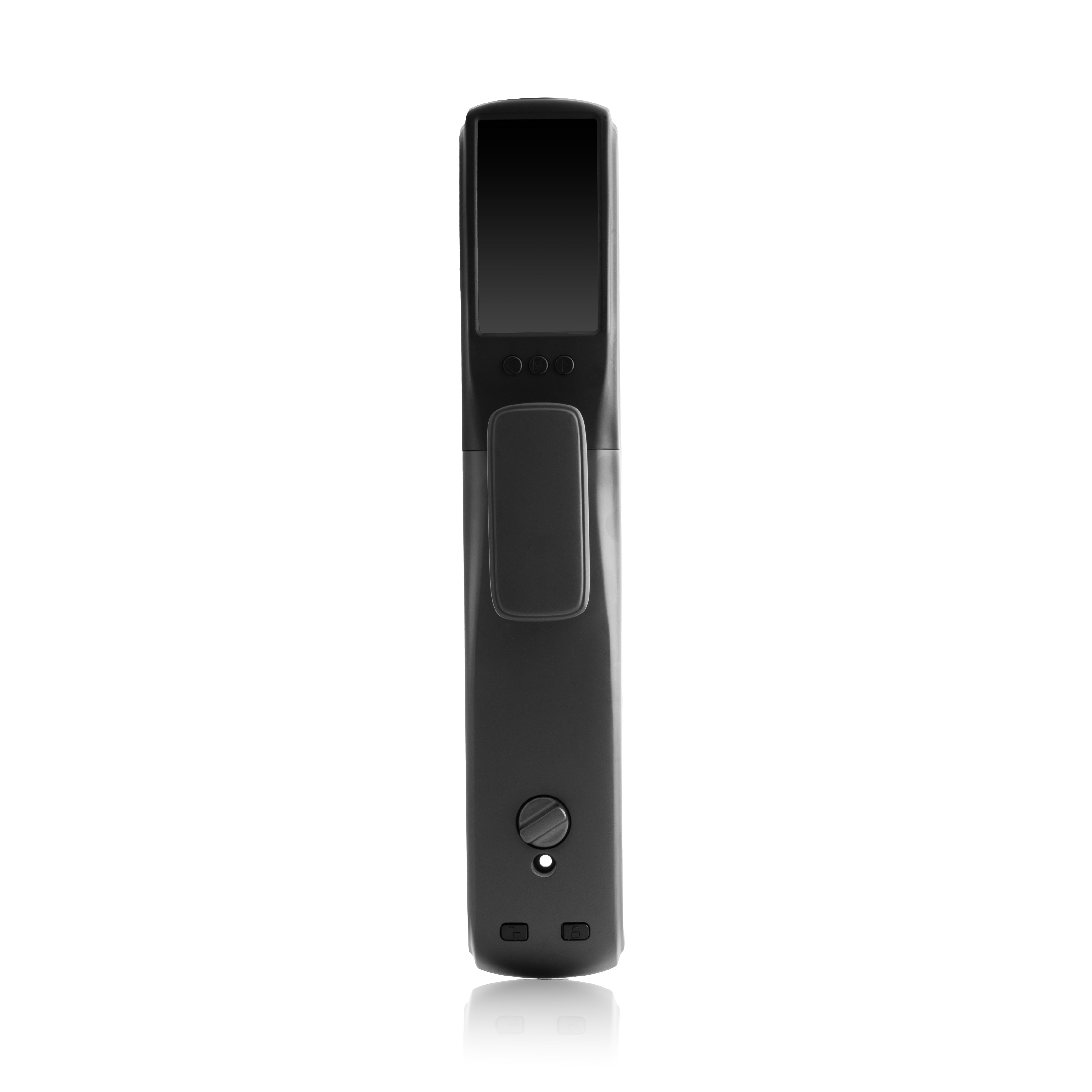

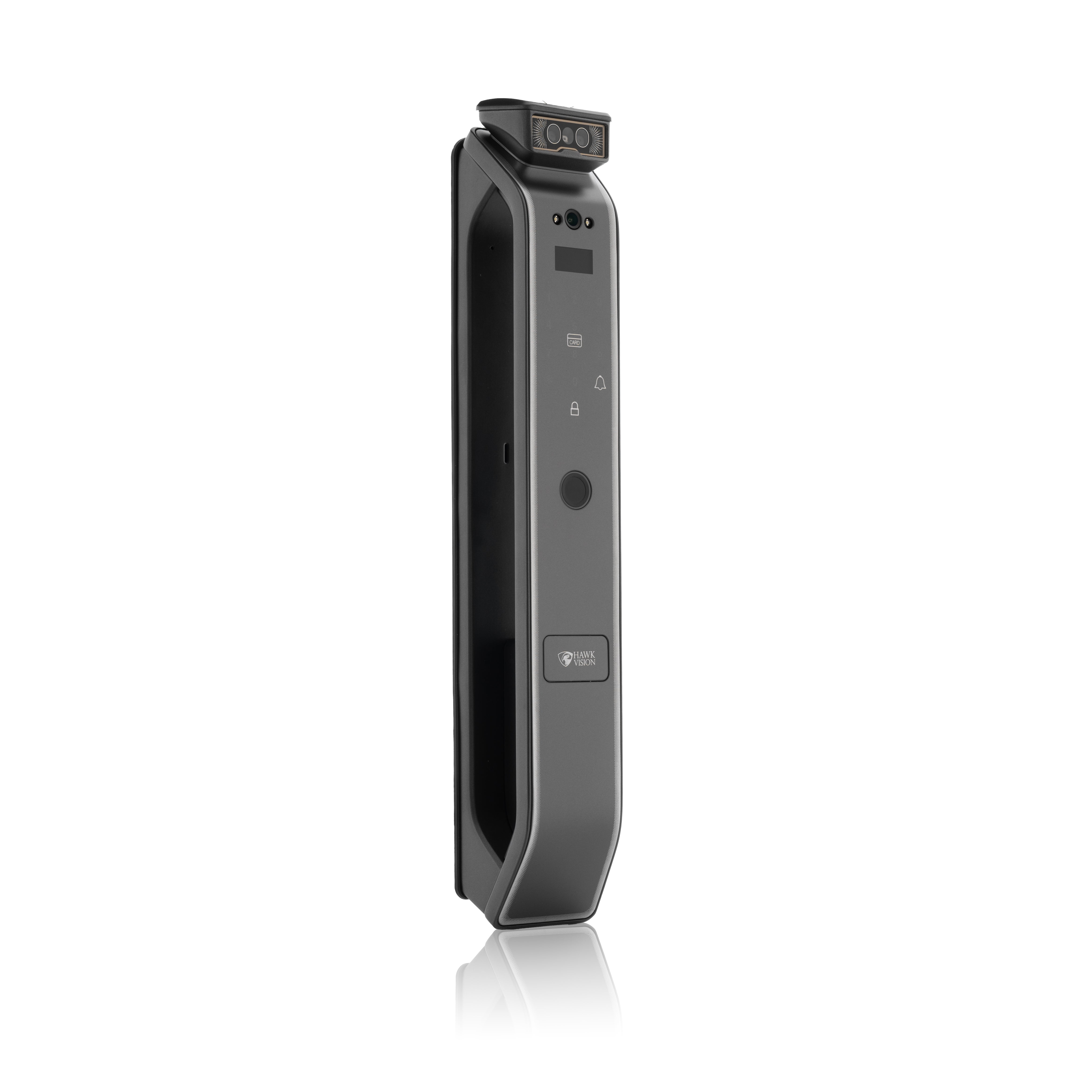

Hawk Vision HV-SDL-F70-M Smart Door Lock with Palm, Face, Fingerprint, Card, Password, Key & HawkSmart App Access


The Hawk Vision HV-SDL-F70-M Smart Door Lock is an advanced smart security lock designed for modern homes, apartments, villas, offices, hotels, and commercial spaces. Built with a durable Aluminum Alloy body and stainless steel mortise, this premium smart door lock provides 7-way access through palm, face, fingerprint, card, password, mechanical key, and HawkSmart mobile app.

The HV-SDL-F70-M includes a 2MP camera, supports up to 250 fingerprints, 250 cards, 100 passwords, and up to 50 face + 50 palm users. It is powered by a 4200 Mah lithium battery and supports fast fingerprint identification in less than 1 second. The lock also includes a door bell function, low battery alarming, intelligent voice navigation, and emergency unlocking with a mechanical key.

This smart door lock supports WiFi Module and Remote Module one at a time, and is suitable for doors with 40–120mm thickness. Its secure latch is designed to help protect against break-in attempts, while the system automatically exits after 8 sec without any operation for added convenience.

Website: www.hawkvisionindia.com

Key Features

  • Premium smart door lock with 7-way access

  • Palm, Face, Fingerprint, Card, Password, Key & App access

  • HawkSmart mobile app support

  • 2MP camera / 2 million pixels

  • Aluminum Alloy material body

  • Stainless steel mortise

  • Fingerprint capacity: 250

  • Card capacity: 250

  • Password capacity: 100

  • Face + Palm capacity: ≤50 Face + 50 Palm

  • Fingerprint identification time: ≤1s / <1s

  • Optional 500DPI fingerprint sensor

  • Password length: 4–10 digits

  • Door bell function

  • Low battery alarming

  • Low voltage alarm with LED indication

  • Mechanical key emergency unlocking

  • WiFi Module and Remote Module supported, one at a time

  • Intelligent voice navigation for lock setting

  • System exits automatically after 8 sec without any operation

  • Secure latch can protect from any break-in attempts

  • Suitable for door thickness: 40–120mm

Product Specifications

Specification

Details

Model No.

HV-SDL-F70-M

Product Type

Smart Door Lock

Materials

Aluminum alloy

Mortise

Stainless steel

7-Way Access

Palm, Face, Fingerprint, Card, Password, Key & App (HawkSmart)

Verification Type

Fingerprint, MiFare card, OTP, Password, mechanical key and mobile app

Users

≤250 Fingerprint + Card + Password, ≤50 Face + 50 Palm

Fingerprint Capacity

250

Password Capacity

100 (6–8 digits)

Card Capacity

250

Camera

2mp / 2 million pixels

Voice Prompt

English

Fingerprint Sensor

Optional (500DPI)

Fingerprint Identify Time

<1s

Finger Print Identification Time

≤1s

Fingerprint Verify Mode

01:N

Fingerprint False Rejection Rate

<0.15%

Door Bell Function

Yes

Low Battery Alarming

Yes

Low Voltage Alarm with LED Indication

Yes

Power Supply

4200 Mah lithium battery

Working Current

<250 mA (Strong drive capability)

Current Consumption

<55mA

Relative Humidity

20% to 93%

Working Temperature

-20°C–60°C

Operating Temperature

-20°C ~60°C

Door Thickness

40–120mm

Password Length

4–10 Digits

Modules Supported

Wifi Module, Remote Module (One at a time)

Emergency Unlocking

A mechanical key can unlock in case of emergency

Auto Exit

System exits automatically after 8 sec without any operation

Secure Latch

Secure latch can protect from any break-in attempts

Website

www.hawkvisionindia.com
