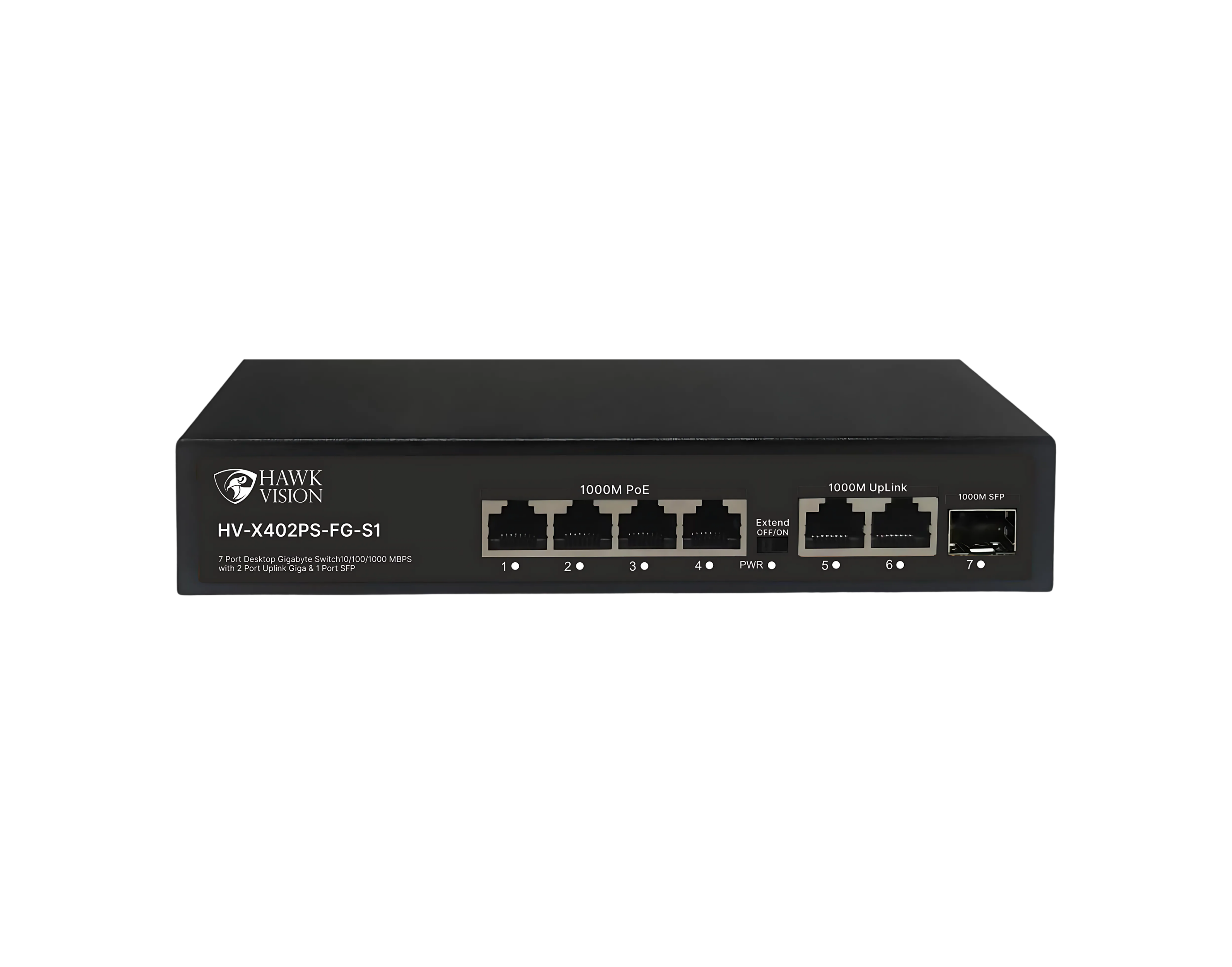

Hawk Vision HV-X402-PS-FG-S1 4+2+1 GIGA Uplink PoE Switch with 4 PoE Ports, 2 Uplink Ports & 1 SFP Port

The Hawk Vision HV-X402-PS-FG-S1 4+2+1 GIGA, UPLINK PoE SWITCH is a reliable network switching solution designed for CCTV systems, IP cameras, access control systems, video door phones, office networks, and security installations. It features 4 × 100/1000Mbps PoE ports, 2 × 100/1000Mbps uplink ports, and 1 SFP port, providing stable connectivity for modern surveillance and networking setups.

This PoE switch supports IEEE802.3af/at PoE standards and offers a 78W PoE power budget, with a maximum 30W output of single PoE port. It provides 12 Gbps full duplex switch capacity and 1.488Mpps/port packet forwarding rate for smooth data transmission.

The HV-X402-PS-FG-S1 supports transmission distance of 0–100m/1000Mbps, and in Extend mode, Port 7–8 Max. 250m/10Mbps via Cat.5e or more. With store-and-forward mode, PoE watchdog support, surge protection, built-in power supply, and easy safe installation, it is suitable for professional security and network deployment.

Website: www.hawkvisionindia.com

Key Features

• 4+2+1 GIGA Uplink PoE Switch

• 4 × 100/1000Mbps PoE ports

• 2 × 100/1000Mbps uplink ports

• 1 SFP port

• Supports IEEE802.af/at

• IEEE802.3af and IEEE802.3at PoE standard

• 78W PoE power budget

• Max. 30W output of single PoE port

• 12 Gbps full duplex switch capacity

• 1.488Mpps/port packet forwarding rate

• Transmission distance: 0–100m

• Port 7–8 Max. 250m/10Mbps via Cat.5e or more under Extend mode

• PoE watchdog supported

• Store-and-forward mode

• Built-in power supply

• Easy and safe installation

• Black color body
