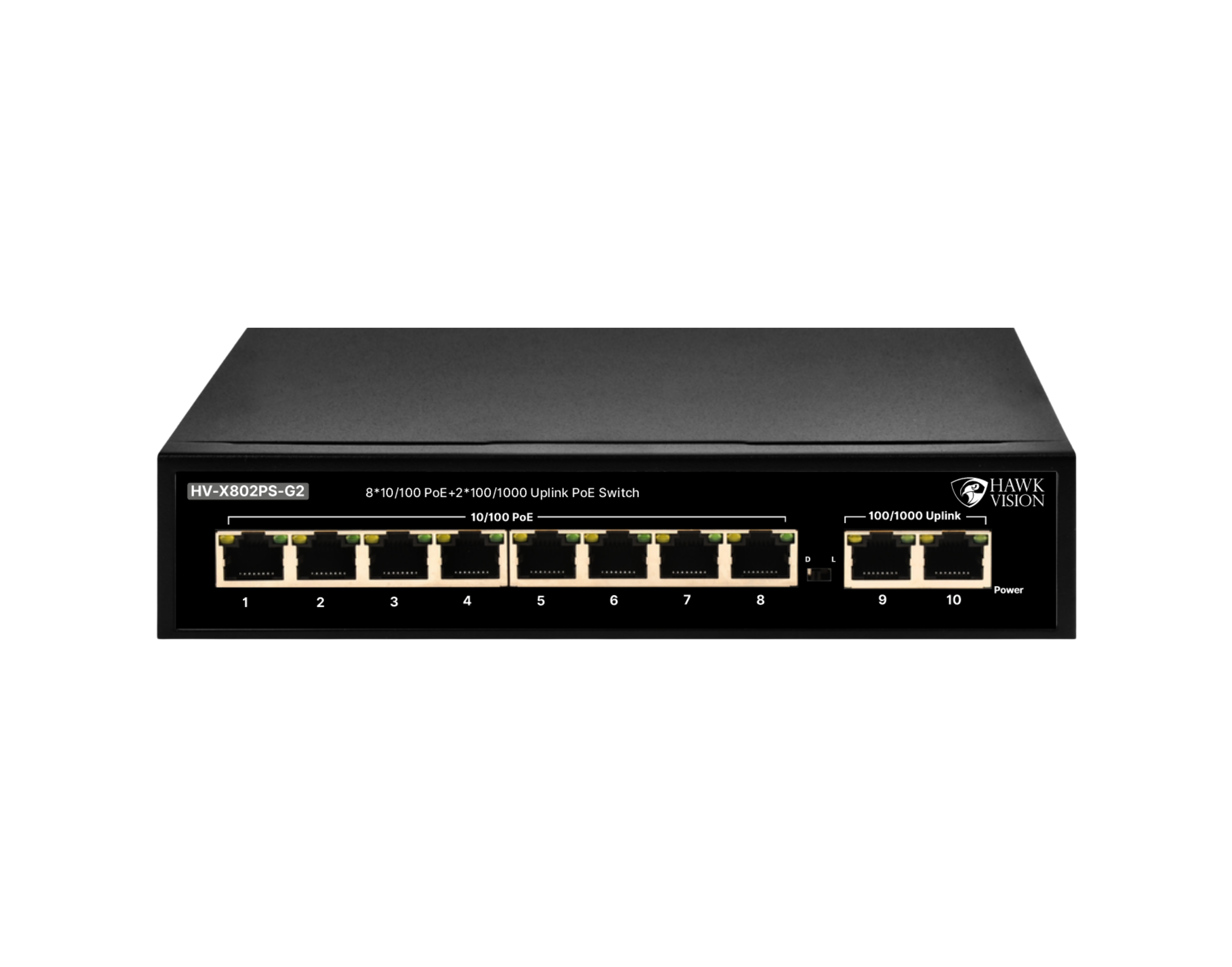

Hawk Vision HV-X802PS-G2 8+2 GIGA Uplink PoE Switch with 8 PoE Ports, 2 Uplink Ports & 120W PoE Budget

The Hawk Vision HV-X802PS-G2 8+2 GIGA UPLINK PoE SWITCH is a powerful PoE networking solution designed for CCTV surveillance systems, IP cameras, access control systems, video door phones, office networks, and security installations. It features 8 × 10/100Mbps PoE ports and 2 × 10/1000Mbps uplink ports, making it suitable for reliable data and power transmission in professional network setups.

This PoE switch supports IEEE 802.3af/802.3at devices and provides a 120-watt PoE budget, with each port supporting a maximum power supply of 30W. It includes Extend Ethernet mode with up to 250m transmission distance, helping support longer cable runs for surveillance and access control applications.

The HV-X802PS-G2 offers plug and play design, requiring no configuration for installation. With a 2K MAC address table, 1.6 Gbps backplane bandwidth, store-and-forward mode, LED indicators, and stable working performance, this switch is a practical choice for security and network deployment.

Website: www.hawkvisionindia.com

Key Features

• 8+2 GIGA Uplink PoE Switch

• 8 × 10/100Mbps PoE ports

• 2 × 10/1000Mbps uplink ports

• Supports IEEE 802.3af / IEEE 802.3at devices

• Up to 4 ports of IEEE 802.3af/802.3at devices powered

• 120-watt PoE budget

• Each port max. power supply reached 30W

• Extend Ethernet mode with 250m transmission distance

• Plug and play design, no configuration required

• 2K MAC address table

• 1.6 Gbps backplane bandwidth

• Store and forward mode

• Power priority mechanism

• MAC automatic learning and aging

• LINK/ACT, POE status, power indicator, extender LED indication

Product Specifications
