Reliable 10/100 Mbps Fiber Media Converter

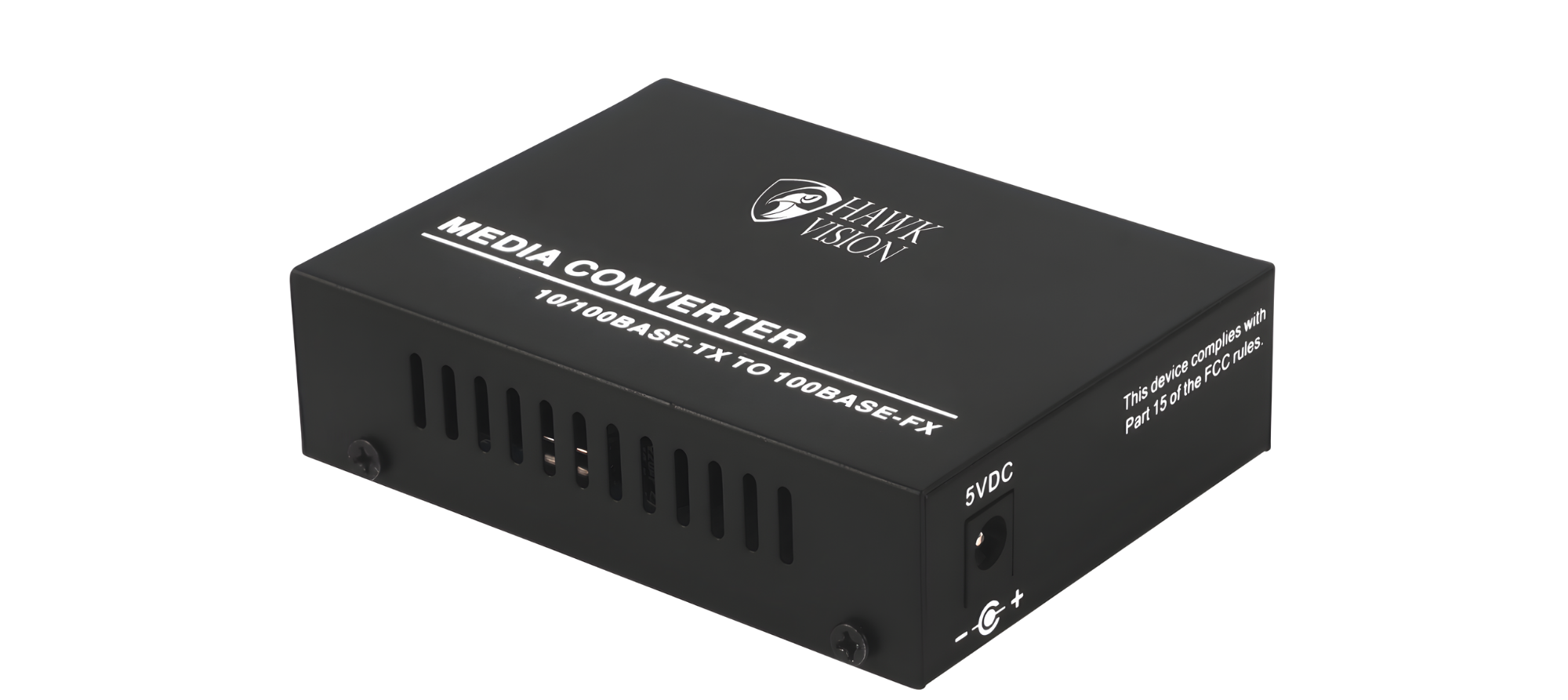

The HV-MC-01-T / HV-MC-01-R Fiber Media Converter is engineered for efficient Ethernet to fiber conversion. It supports 10/100 Base-TX and 100Base-FX networking standards, ensuring smooth and stable long-distance communication for surveillance systems, enterprise networks, and industrial applications.

High-Speed & Stable Performance

This media converter supports auto-negotiation for 10M/100M transmission speeds with full-duplex and semi-duplex modes. Built with advanced media conversion technology, it ensures low bit error rates and stable data transfer over long distances.

Long Distance Fiber Transmission

With support for single-mode fiber and multiple wavelength options (850nm / 1310nm / 1550nm), the device delivers transmission distances up to 20KM, making it ideal for CCTV networks, offices, campuses, and industrial networking solutions.

Durable & Energy Efficient

Designed for continuous operation, the converter features low power consumption below 2.5W and a high MTBF of 100,000 hours for dependable long-term performance.

---

Key Features

• 10/100 Mbps Ethernet Fiber Media Converter
• Supports IEEE802.3 & IEEE802.3u Standards
• RJ45 to SC/FC Fiber Port Conversion
• Single Mode Fiber Support
• Transmission Distance Up to 20KM
• Full Duplex & Semi Duplex Auto-Negotiation
• Compatible with Cat5 & Cat6 Cables
• Low Power Consumption (<2.5W)
• Stable Data Transmission with Low Bit Error Rate
• Compact & Reliable Design

---

Technical Specifications

---

Applications

• CCTV Surveillance Systems
• Industrial Networking
• Enterprise LAN Networks
• Telecom Communication
• Long Distance Data Transmission
• Smart Building Infrastructure
